The fully automatic honey spoon production line can fill honey in plastic spoon, seal it, and then pack it in a stick sachet bag.
Item No :
JS-220HOrder(MOQ) :
1Payment :
L/C, D/P, D/A, T/T, Cash.Product Origin :
Guangdong, ChinaShipping Port :
Guangzhou Port / Shenzhen PortWeight :
500KGAutomatic Plastic Honey Spoon Filing Sahet Packing Machine Line
Description

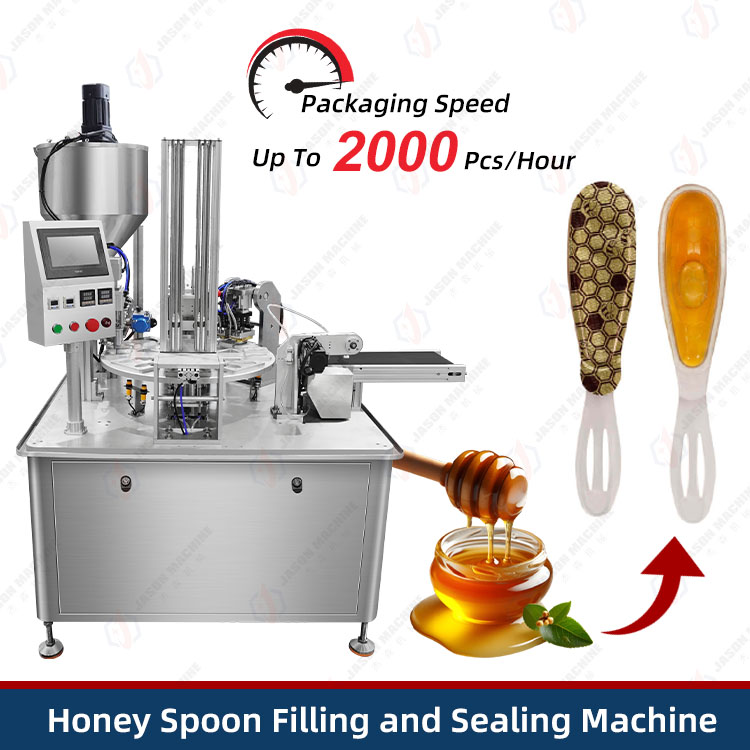

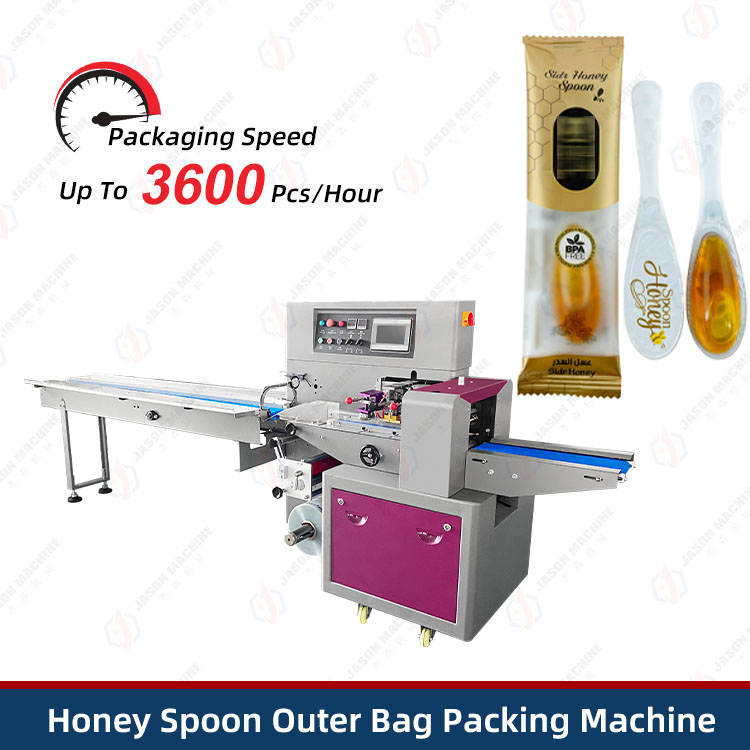

The fully automatic honey spoon production line can automatically complete a series of processes such as spoon dropping, metering, filling, film placement, sealing, and outer bag packaging.
The machine is suitable for a variety of liquid materials such as honey, condensed milk, syrup, sauces, etc.
Specification
| Filling Head Number | 1 filling head | 2 filling heads | 4 filling heads |
| Production Capacity | 800-1000 cups/hour | 1800-2000 cups/hour | 3200-4000 cups/hour |
| Filling Range | 3-15ml | 3-15ml | 3-15ml |
| Machine Size | 1250(L)*1300(W)*1750(H) mm | 1400(L)*1500(W)*1750(H) mm | 3000(L)*650(W)*1700(H)mm |
| Voltage | 220V, 50/60HZ | 220V, 50/60HZ | 220V, 50/60HZ |
| Power | 2.2Kw | 2.4Kw | 3.5Kw |
| Machine Weight | 400KG | 500KG | 700KG |
| Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Main Feature
1.The machine utilizes intelligent PLC control and a color touch screen for easy parameter setting and operation.
2.A high-precision piston pump is used to measure and fill honey, achieving a measurement error of just ±1%.
3.The PID temperature controller ensures precise temperature control, making it compatible with various sealing materials.
4.The spoon mold is interchangeable, allowing for quick adjustments to accommodate different spoon sizes.
5.With a compact design, durable parts, easy maintenance, and reliable safety features, the machine offers simple and efficient operation.
