The automatic hardware counting and packaging machine is ideal for solid products requiring mixed packaging, including nails, screws, nuts, washers, fasteners, fittings, toys, building blocks, dice.
Item No :
JS-320LSOrder(MOQ) :
1Payment :
L/C, D/P, D/A, T/T, Cash.Product Origin :
Guangdong, ChinaShipping Port :
Guangzhou Port / Shenzhen PortWeight :
200KGAutomatic Back Seal Sachet Hardware Nut Screw Bolt Counting Packing Machine
Description

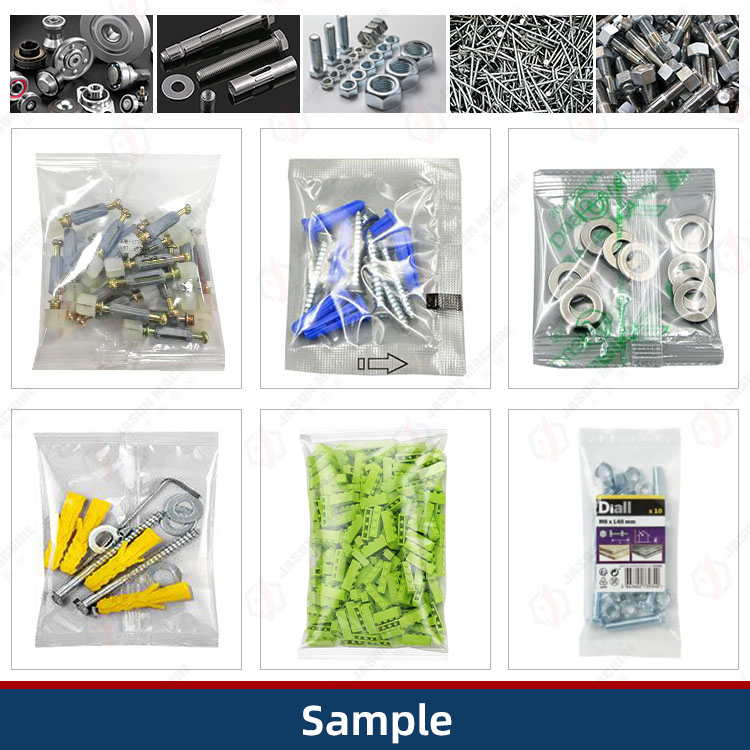

The automatic hardware accessories counting and packaging machine is suitable for various solid products that need mixed packaging, such as nails, screws, nuts, washers, fasteners, fittings, toys, building blocks, dice, etc.
Specification
Packing Speed | 5-30 bags/min |
Bag Length | 50-180mm |
Bag Width | 40-150mm |
Roll Film Width | MAX.320mm |
Packaging Material | OPP/CPP, OPP/PE, PET/PE, etc. |
Machine Size | 1100(L)*700(W)*1600(H) mm |
Voltage | 220V, 50/60HZ |
Power | 3Kw |
Machine Weight | 200KG |
Air Pressure | 0.4-0.6Mpa |
Main Feature
1.The machine can automatically handle disposing, counting, measuring, filling, and packing. The counting quantity is easily adjustable, with a counting accuracy of over 99.9%.
2.Operated via PLC and touch screen, all parameters, except for mechanical adjustments, can be set through the HMI.

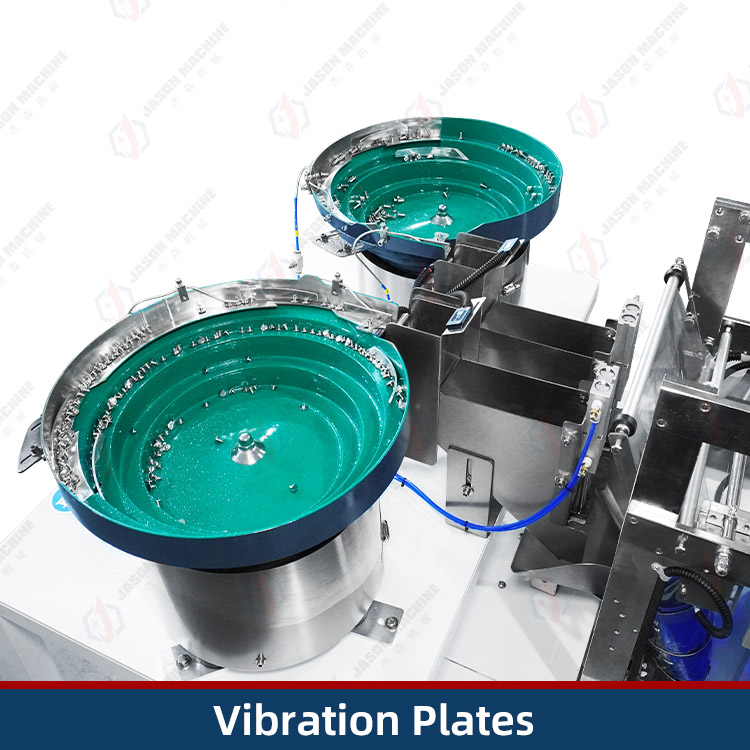

3.It features an optical fiber counting method, with an optional mechanical counting system. The counting device can be controlled by either a cylinder or a solenoid switch.
4.The machine will sound an alarm or stop automatically when the hopper is empty.
5.It uses high-quality, branded electrical components, ensuring stable performance, reliability, and a long service life.
